140mm Body Diameter Poly Feed Wheels


Replaceable Tire System -This picture is the GA0106H Hub with
GA0106T80 Tire mounted on it.

Part # Mount/Description Width Bore Price
Steel Hubs with Bonded Tires - Non-Replaceable Type
NEW! We can recover your bonded tires- Call for details!
GEM3341 Flange 10mm 25mm $168.95
GEM3339 Flange 20mm 25mm $168.95
GA4432 Shaft w/Set Screws 50mm 25mm $305.00
The items listed below are the replaceable type.
GAO106H 20mm hub for replacement feed wheel - flange mount, no keyway 20mm 25mm $145.00
GAO106T80 20mm replacement poly feed wheel 20mm   $27.00
GAO108HAS 50mm hub for poly replacement feed wheel, shaft mount 50mm 35mm $145.00
GAO108T80 50mm replacement poly feed wheel 50mm   $30.00
140mm Body Diameter Steel Feed Wheels





Seen at left: GA4542 - Shaft Mount

NEW Resharpening Service - Call for details!
Part # Mount/Description Width Bore Price
GA4563 Flange 10mm 25mm $181.25
GA4562 Flange 20mm 25mm $181.25
GA4545 Flange 50mm 25mm $243.00
GA4544 Shaft 10mm 35mm $125.00
GA4542 Shaft Mount 20mm 35mm $125.00
GA4569 Shaft 50mm 35mm $155.50
GA4564 Flange (bottom) 20mm 25mm $181.25
FEED ROLLERS
Need help making your decision?

Feed Rollers 101

Wadkin North America offers feed rollers from leading feed roller manufacturers.  Strict specifications are maintained for Weinig and other moulders.

Hubs and tires available for all makes and models of moulders. Now, a resilient, replaceable drive tire mounts on its hub without adhesives or bonding.

Raised Grain Problems are gone - The high friction tire provides more traction with less pressure, eliminating major cause of raised grain, increasing overal product quality.

Eliminates slippage - Three times the traction of steel rolls, provides feed control for higher output.

Non-marking -  Won't mark pre-surfaced or pre-finished stock as does steel or rubber rolls.

Lower Reject Figures - The tire gives - not the wood.

Economical to Use -  No downtime - quick changes of new tires from your small inventories - reduces number of bevels required.

Specifications:

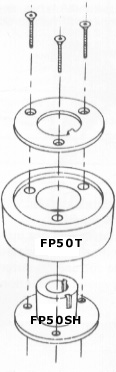

Drive Hub - The machined steel hubs are bored to your shaft and key specifications . When placing orders please state Product Number with or without Bore and Key. Other Bore and Key specifications available on request.

Feed Roller1.gif

Product Number

Bore

Key

Width

Machine

Price (Any Qty.)



H-110S (2")

30mm

10mm

2"

SCMI P64, P75, Compact 22, 23 & 23S, Sintex

$125.00

H-110S (3/4")

30mm

10mm

3/4"

SCMI P64, P75, Compact 22, 23 & 23S, Sintex

$110.50

H-3

3"

3/8"

2"

Diehl & others

$200.20

H-4

1 5/8"

3/8"

2"

Mattison & others

$115.20

H-5S*

35mm

10mm

2"

Weinig, SCMI (Superset 23, Logic 23, P18, P22, P170, P230) & others with set screw

$88.50

H-6S*

35mm

10mm

3/4"

Weinig & SCMI (Superset 23, Logic 23, P18, P22, P170, P230) & Wadkin Shaft

$104.30

H-6-WG

30mm

none

3/4"

Weinig -three bolt hole

$125.00

GA0106H

25mm

none

3/4"

Wadkin Flange Mount

$145.00

H-6-SCMI

30mm



3/4"

SCMI Bolton

$145.00

GA0107HAS

35mm

10mm

3/4"

Weinig & IIDA

$150.50

H-8-WG

30mm

none

2"

Weinig -three bolt

$155.00

GA0108HWK

25mm

none

2"

Wadkin Flange Mount

$155.00

H-8-SCMI

30mm



2"

SCMI Bolton

$155.00

*Keystock M8 x 10mm for SCMI Machines: 2" long - $2.00 & 3/4" long - $1.00

Replacement Tires
Precision moulded from a space age elastomer, formulated for increased toughness, traction, abrasion, and heat resistence. Do not confuse with ordinary rubber, urethanes and other synthetics. Orange Tire denotes 80 Durometer, Green Tire denotes 85 durometer and Red Tire denotes 90 Durometer. The higher the number, the harder the tire.
Product Number Width Outside Diameter Price (Any Qty.)

T-110-120R (2")

2"

120mm (4 3/4")

$25.00

-

T-110-120R (3/4")

3/4"

120mm (4 3/4")

$22.50

R-75

T-3-206

2"

206mm (8-1/8")

$70.00

T-4-160

2"

160mm (6-5/16")

$36.50

T-4-170

2"

170mm (6-11/16")

$53.20

GA0104T90

2"

184mm (7-1/4")

$68.00

GA0105T80

2"

140mm (5-1/2")

$32.50

T-6-140

3/4"

140mm (5-1/2")

$27.00

GA0107T80

3/4"

170mm (6-11/16")

$37.20

GA0108T80

2"

140mm (5-1/2")

$30.00
Assemblies are flush sided for stacking. All sizes shipped from inventory. Bevels available.

Hold Down Rollers with bearing

Product Number

Diameter

Machine

Price



K30-69-212

80mm x 20mm

Weinig, Wadkin & SCMI*

$38.50

*Needs Reducing Bushing - $15.00
